Corrugated Switchboard Matting
Description

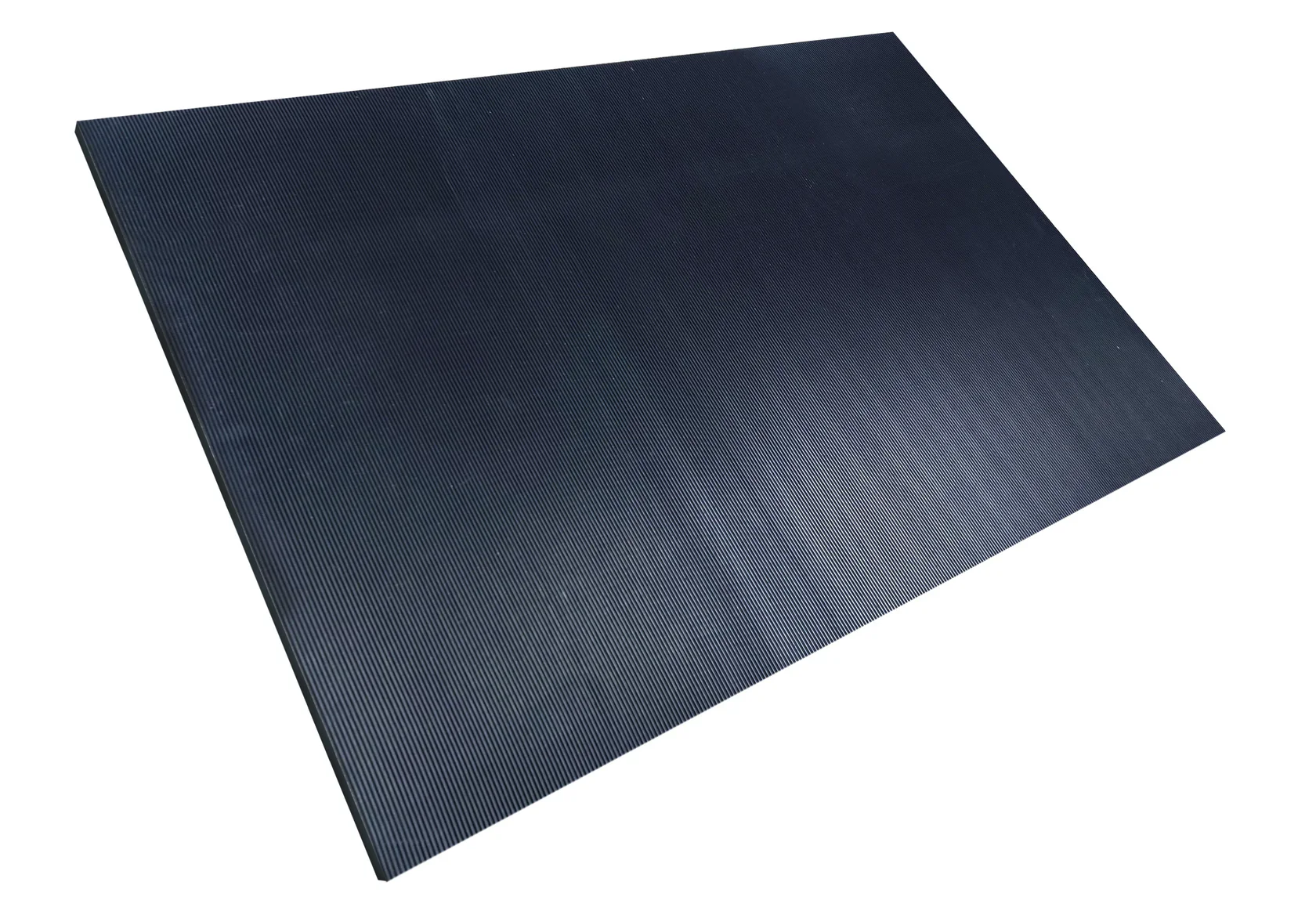

Corrugated Switchboard Mats – High Voltage Electrical Insulation Matting
Protect your workforce from electrical hazards with our Corrugated Switchboard Mats, available in four different gauges to meet varying system fault levels and safety requirements. These non-conductive rubber mats are essential in any environment where a health and safety risk assessment indicates potential exposure to high-voltage electrical shock.
Manufactured to meet ASTM D178 standards, these switchboard insulating mats are specially engineered to deliver superior dielectric protection, making them ideal for use around electrical panels, switchgear, transformers, and control rooms. The corrugated surface enhances traction, reducing the risk of slips while adding another layer of safety in high-risk areas.
✅ ASTM Certified Non-Conductive Rubber
✅ Dielectric Strength Tailored to Your Voltage Requirements
✅ Corrugated Surface for Slip Resistance
✅ Available in Multiple Thicknesses (Gauges)
✅ Essential for Electrical Safety Compliance
Ideal For Use In:

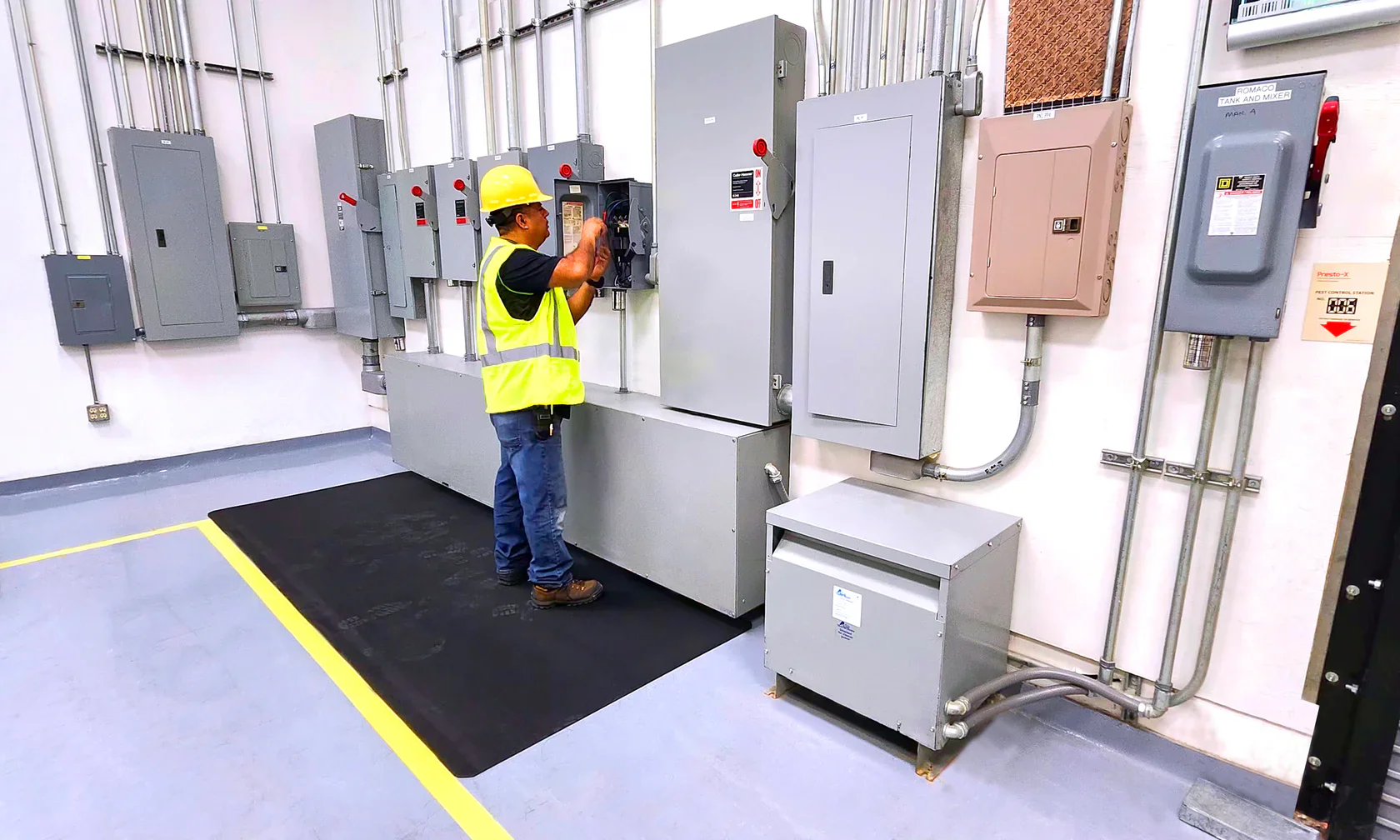

Substations, transformers, switches, electrical panels, engine rooms, and generators. When it comes to lessening the threat of an electrocution hazard, non-conductive switchboard mats get the job done.
Ensure workplace safety and electrical compliance with our heavy-duty, long-lasting corrugated electrical insulation mats—trusted by professionals across commercial, industrial, and utility sectors.

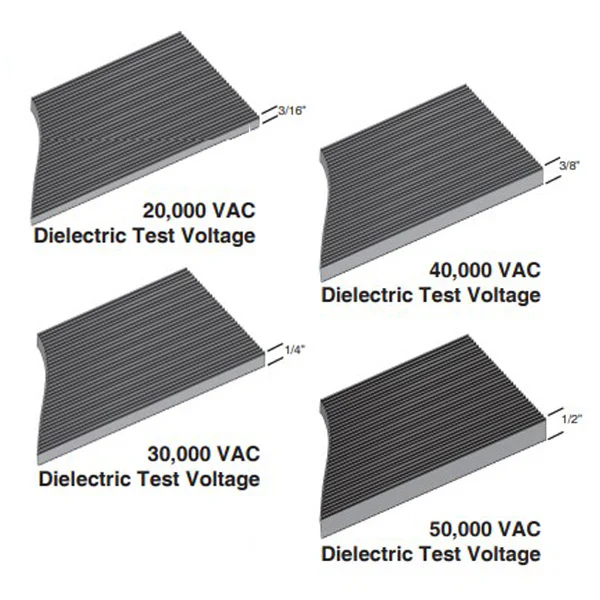

Specifications
Class 1 matting is 3/16” thick and tested to
Dielectric test voltage 20,000 VAC
Proof tested over the entire surface at 10,000 VAC
Recommended maximum use voltage 7,500 VAC
Class 2 matting is 1/4” thick and is tested to
Dielectric test voltage 30,000 VAC
Proof tested over the entire surface at 20,000 VAC
Recommended maximum use voltage 17,000 VAC
Class 3 matting is 3/8” thick and tested to
Dielectric test voltage 40,000 VAC
Proof tested over the entire surface at 30,000 VAC
Recommended maximum use voltage 26,500 VAC
Class 4 matting is 1/2” thick and tested to
Dielectric test voltage 50,000 VAC
Proof tested over the entire surface at 40,000 VAC
Recommended maximum use voltage 36,500 VAC
