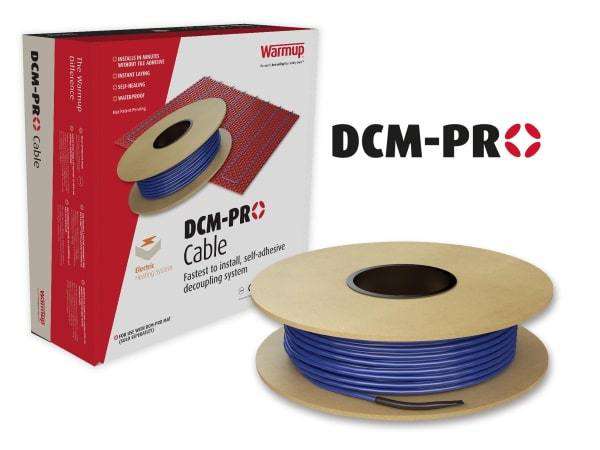

Warmup DCM-PRO Cable
The DCM-PRO Heating Cable is durable and flexible. It’s ETFE inner jacket allows for high heat output while it’s PVC outer sleeve protects for a smooth installation. The DCM-PRO Heating cable is suitable for use with both Membrane options.
The DCM-PRO Membrane’s castellations make fitting the Heating Cable easy, quick, and tool free! The DCM-PRO Membrane protects the secured cable from any potential damage during installation – leading to a reduced risk of cable failures.
Cable spacing can vary or rotate for the highest flexibility in heat outputs to accomplish anything from Comfort Heating to Primary Heating.
Specifications
| Operating voltage | 120V or 240V |
| Output | Varies with spacing – approx. 4W/ linear foot |
| Cable thickness | 3/16″ (4.5mm +/- 0.2mm) |
| Inner Insulation | ETFE |
| Outer jacket | PVC |
| Cold lead | 10ft (3m) long, 2 core braided |
Refer to the table below for approx. square footage of cable with the respective amount of peg spacing (ie. 16.7 ft cable covers 5 sqft. using a 3 peg spacing configuration and 7 sqft. with a 4 peg spacing configuration)
The DCM-PRO Heating Cable is durable and flexible. It’s ETFE inner jacket allows for high heat output while it’s PVC outer sleeve protects for a smooth installation. The DCM-PRO Heating cable is suitable for use with both Membrane options.
The DCM-PRO Membrane’s castellations make fitting the Heating Cable easy, quick, and tool free! The DCM-PRO Membrane protects the secured cable from any potential damage during installation – leading to a reduced risk of cable failures.
Cable spacing can vary or rotate for the highest flexibility in heat outputs to accomplish anything from Comfort Heating to Primary Heating.
Specifications
| Operating voltage | 120V or 240V |
| Output | Varies with spacing – approx. 4W/ linear foot |
| Cable thickness | 3/16″ (4.5mm +/- 0.2mm) |
| Inner Insulation | ETFE |
| Outer jacket | PVC |
| Cold lead | 10ft (3m) long, 2 core braided |
Refer to the table below for approx. square footage of cable with the respective amount of peg spacing (ie. 16.7 ft cable covers 5 sqft. using a 3 peg spacing configuration and 7 sqft. with a 4 peg spacing configuration)
Original: $97.73
-65%$97.73
$34.21Description
The DCM-PRO Heating Cable is durable and flexible. It’s ETFE inner jacket allows for high heat output while it’s PVC outer sleeve protects for a smooth installation. The DCM-PRO Heating cable is suitable for use with both Membrane options.
The DCM-PRO Membrane’s castellations make fitting the Heating Cable easy, quick, and tool free! The DCM-PRO Membrane protects the secured cable from any potential damage during installation – leading to a reduced risk of cable failures.
Cable spacing can vary or rotate for the highest flexibility in heat outputs to accomplish anything from Comfort Heating to Primary Heating.
Specifications
| Operating voltage | 120V or 240V |
| Output | Varies with spacing – approx. 4W/ linear foot |
| Cable thickness | 3/16″ (4.5mm +/- 0.2mm) |
| Inner Insulation | ETFE |
| Outer jacket | PVC |
| Cold lead | 10ft (3m) long, 2 core braided |
Refer to the table below for approx. square footage of cable with the respective amount of peg spacing (ie. 16.7 ft cable covers 5 sqft. using a 3 peg spacing configuration and 7 sqft. with a 4 peg spacing configuration)
